Applications:
Metal ridge cap is recommended to prevent water, rain or snow leakage, for industrial and residential applications, enjoying simple installation. Ridge-stepping on cap is making match with step tile. Metal ridge cap roll forming machine is the essential for its production.

Features:
● Hydraulic Decoiler with Break is equipped for roll forming production, not manual one.
● Refine steel plates in 22 – 25 mm as Sidewall of machine is used.
● 12 – 16 Nos of Rollers is used for ridge cap forming, ensuring profile strength.
● Step forming by AC Motor is adopted for its ridge stepping.
● Mitsubishi (Japan) PLC and 5.7' Touchable Screen are used for for data processing and setting.
● Roll forming speed is 2 – 12 meters / minute.

Technical Parameters:
● Suitable Material: PPGI Coil
● Material Thickness: 0.40 -- 0.80 mm

Production Process:
decoiling – roll forming – stepping – cut-off after sizing – final ridge cap

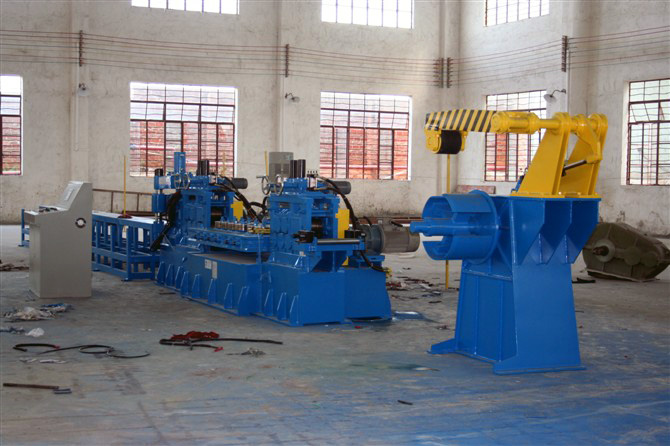

Composition:
● 3 tons hydraulic decoiler: 600 mm width; Ø 500 – 600 mm inner diameter; 2.0 kw
● Roll forming machine: 12 – 16 Nos roller station; Ø 60 mm main shaft; 22 – 25 mm machine sidewall thickness; 2 – 12 meters / minute
● Hydraulic step forming & cutting-off: Gr12 steel blade; 15 tons working table pressure; with fan-cooler; 4 kw
● Simple run-out table: 4 pieces, in 8# channel steel
● PLC controller: Mitsubishi PLC; 5.7" Mitsubishi touchable screen; Japanese frequency converter; Schneider electronic components
