Suitable raw-material specification:
● Materials: Carbon Steel Coil, CR Steel Coil
● Material Thickness: 1.5 – 2.0 mm
● Profile Width: 76.2 mm
● Profile Height: 41.3 mm

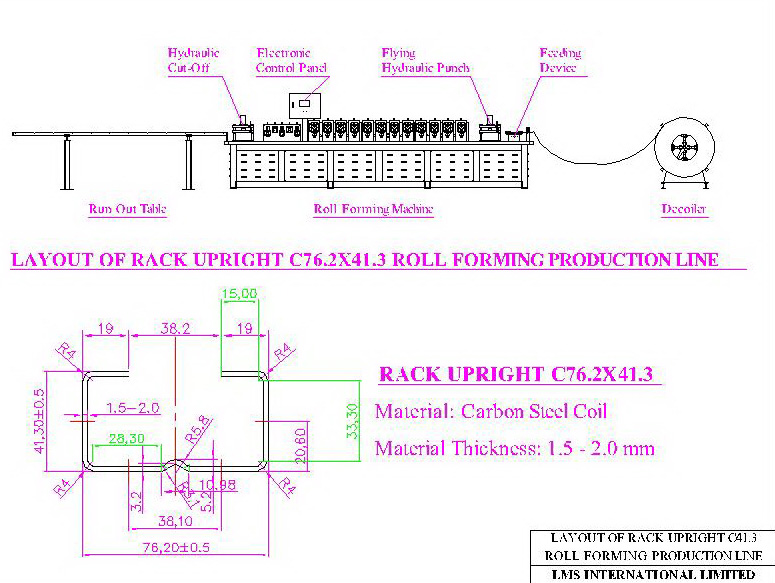

● Profile specification: C76.2X41.3X1.5-2.0, same as drawing, with Rib

Producing process:
material coil – decoiling – feeding – flying hole-punching – roll forming – hydraulic cutting-off – rack profile – PLC

Machine composition:
● Manual decoiler: 1 set
● Leveler: 1 set
● Roll Forming Machine: 1 set
● Flying Cutter: 1 set
● Run Out Table: 1 set
