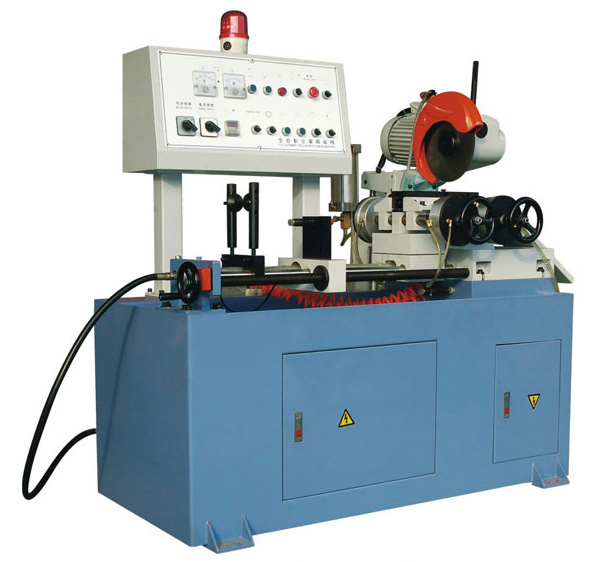

Automatic Metal Circular Sawing Machine ( Pneumatic)

Overview

Main Features
● Vertical sliding saw head ensures stable and precise cutting ( Circular Saw )
● Backlash eliminating device prolongs the life of saw blade
● Counter Balance System for maximum stability through the entire cut
● Patented Floating Feeding Carriage for superior cutting length accuracy and smooth material handling
● Rigid and reliable clamping vise provides secure material holding
● Automatic lubrication system maintains good work performance
● Circulating cooling system results in smooth cutting surfaces and longer blade life
● Electronic Saw blade protection cover for safety operation
● Built-in chips tray for convenient cleaning and maintenance

Standard Components:
1. Basic machine station;
2. Oil pressure system;
3. Automatically controlled electric system;
4. Feeding length digital display system;
5. Maintenance Kit

Specifications:

Model		HD-300AS-CNC	HD-315AS-CNC
Main Drive Motor		2.4/3.0Kw(Double Speed Motor） 380V 50HZ	2.4/3.0Kw(Double Speed Motor） 380V 50HZ
Blade Speed（RPM)		26/52 (Stainless Steel)	26/52 (Stainless Steel)
		52/104 ( Standard)	52/104 ( Standard)
		150/300 （Aluminum Alloy or Copper）
Saw Blade Size	Diameter(mm)	HSSФ250-Ф300	HSSФ250-Ф325
	Aperture(mm)	Ф32	Ф32
	Pin hole(mm)	2×Ф11×PCD63	2×Ф11×PCD63
Clamping(mm)		Single	Single
Feeding Length		6-650mm	6-650mm
Air Pressure（Kg/cm2)		5-8	5-8
Machine Size（LWH)(mm)		215010001700	215010001700
Machine Net Weight (Kg)		660	700
Cutting Capacity ( take mild steel as reference) advising cutting thickness（≤3.0mm)
Head Swivel		90 degree	90 degree
Round tube○		75	90
Square tube□		75 X 75	80 X 80
Rectangle tube		75 X 60	100 X 50
Angle Steel∟		50 X 50	90 X 90
U-Shaped Steel凵		50 X 50	100 X 50
