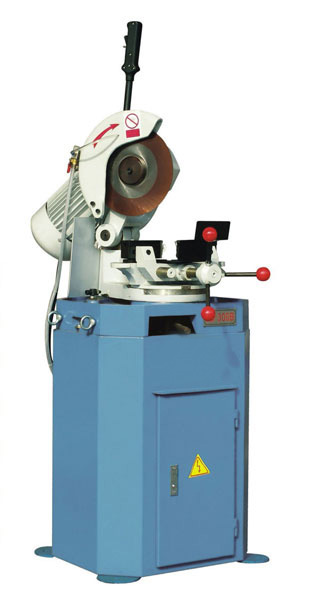

Manual metal circular sawing machine

Manual metal circular sawing machine

It’s a powerful machine that can cut through solids, tubing, or pipe. The head has a strong motor coupled to a direct drive gear box that allows the blade to cut through the material chatter free which increases blade life. It comes with a powerful coolant pump that cools the blade increasing blade life and washes chips away.

Main Features:
● No noise ,no burrs , Feed use manual ,rotary nose can be about 45 degrees.
● With two-way manual clamp,automatic cooling system and hand-foot-block.
● Without fragments or dus:
● The bilateral and bidirectional clamp causes the metal to be steady. The section is smooth without fragments,cutting with low sound pollution.
● Smooth without fragments,cutting with low sound pollution.
● Accurate-fast-bright and clean.
● Cuts accurately and the speed surpasses band saw and bow saw .
● Simultaneously,the section is bright and clean without heat thus sauves second processing.
● The head may adjusts the bevelling or mill groove.The angle is accurate and the pipe connection is finished perfect.
● Cools the pump  The circulation cooling system has the especially large capacity to store the oil drum ,which guarantees the usage of the saw and smooth of the section.

Specifications:

Model

HD-275 series

HD-300 series

HD-315 series

Main Drive Motor (Kw)

0.55/0.75Kw (Double Speed Motor)
0.75Kw(Single Speed Motor)
50Hz

1.3/1.8KW 2.0/2.4KW 50/60HZ 2.0

2.4/3.0Kw 380V 50HZ

Blade Speeds(RPM)

52/104(Double Speed) 380V or 220V

26/52 (stainless steel)

25/50 (stainless steel)

52 (Single Speed) 380V

52/104 (standard)

50/100 (standard)

52(Single-Phase)220V

150/300 (Aluminum alloy or copper)



Saw blade size

Diameter
(mm)

HSSФ250-Ф275

HSSФ250-Ф300

HSSФ250-Ф325
(Special) Ф350

Aperture (mm)

Ф32

Ф32

Ф32

Pin hole(mm)

2×Ф11×PCD63

2×Ф11×PCD63

 2×Ф11×PCD63

Max. Clamping capacity (mm)

85

110

140

Cooling water pump

90W

90W

90W

Use of compressed air

0.4-0.6Mpa

0.4-0.6Mpa

0.5-0.8Mpa

Machine Size(L*W*H)
(mm)

400*700*1100

600*900*1650

650*900*1400

Machine Net weight (Kg)

85

185(A series)
210(B series)

240

Cutting Capacity:

Cutting Capacity (take mild steel as reference)
Model 275 series 300 series 315 series
Head Swivel 90 45 90 45 90 45
Round Tube○ 50 38 80 60 90 80
Square Tube□ 50 X 50 38 X 38 75 X 75 50 X 50 80 X 80 76 X 76
Rectangle Tube 50 X 25 38 X 25 75 X 90 75 X 45 100 X 50 80 X 50
Angel Steel ∟ 50 X 50 38 X 38 75 X 75 50 X 50 100 X 100 80 X 80
U-Shaped Steel凵 50 X 50 38 X 38 75 X 75 50 X 50 100 X 50 80 X 80
Advising cutting thickness ≤1.0mm ≤1.5mm (A series)
≤2.0mm (B series)
≤3.0mm
