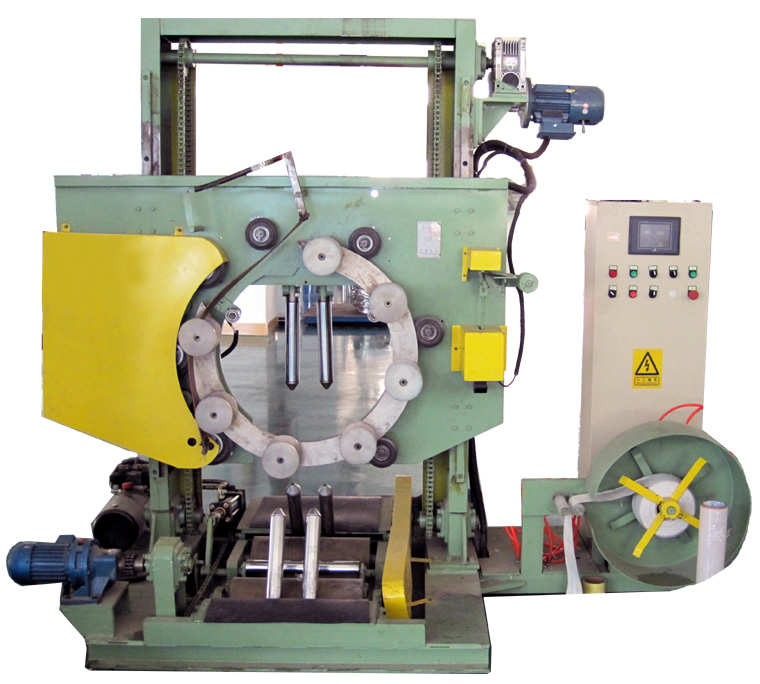

Coil Wrapping Machine

Coil Wrapping Machine

Performance:
applicable to the external packing of ring-shape pieces such as steel band, ribbon copper, aluminum tape, steel wire and wire cable etc. Satisfactory rust, corrosion and dust protection on steel, copper and aluminum tapes. Its fully automatic.

Features:
easy access of cargoes to be packed and comprehensive wrapping capacity, overlapping of tape-up straps and speed conversion are adjustable according to packing requirements; resolving ring automatically positions after packing, easy and simple to handle and regulate.

Model

Roll width(mm)

Internal Diameter(mm)

Outer Diameter(mm)

Weight Bearing (Kgs)

Power (Kw)

DB-300

300

≤Ф500

Ф800-1800

3000

4

DB-400

400

≤Ф500

Ф800-1800

4000

5.5

DB-600

600

≤Ф500

Ф800-1800

6000

5.5

Note: the above parameter is for reference only due to continual development and innovation.
