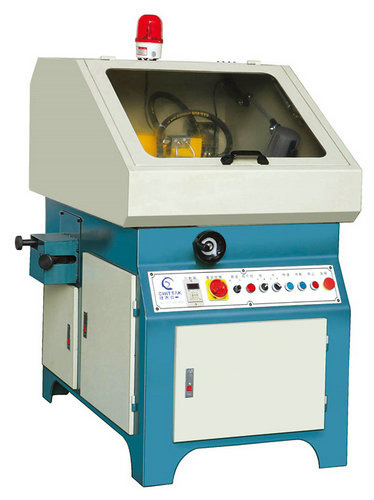

Machine Main Features:
● All Mechanical form. Use imported bearings to ensure the quality and grinding machine accuracy.
● Use CBN grinding wheel, high spindle speed(7000 R/Min) to ensure the grinding speed and jagged surface finish (an increase of blade wear resistance, reduce cutting friction and heat generated)
● Emulsion cooling method used to ensure the grinding saw blade without annealing, an increase of saw tooth surface finish.
● As a result of CBN grinding wheel and the water cooling system, teeth grinding or opening can be done in a complete circle ( due to no adjustment during the grinding process, to make sure the saw blade grinding quality)
● Easy to operate ( blade diameter, tooth pitch, tooth depth, anterior horn, posterior horn be set before grinding), personnel with minimal training can do the work.
● Posterior horn fine-turning device and tooth pitch adjustment system can be used to adjust the angle of posterior horn
● Grinding speed reducer and frequency converter can be adjusted step less free, convenient and flexible ( suitable grinding speed can be adjusted according to the thickness of blade and tooth pitch)
● Whole machine enclosed with low noise, using recirculated water-cooling system, without dust pollution, environment protection
● Automatic iron filtering system, you can focus on iron fillings to ensure that coolant clean and recycling.

Specifications:
