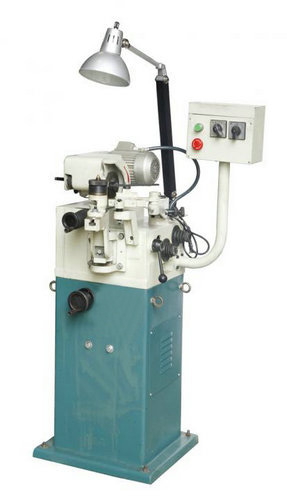

Saw blade sharpening machine

Saw blade sharpening machine

Main features:
● This machine is easy to operate,the cutting angle,tooth shape and tooth depth on the saw are easy to adjust,with a high precision,sharp and durable.
● Quick adjustments can be made according to the various thickness of the coping saw bits.
● The head section can be adjusted or swinged upward or down-ward freely and the beveling and coping can be without changing the abrasive disk.

Standard accessories:
1. Index plate: 2 pcs
2. Grinding wheel: 10 pcs
3. Working lamp: 1 pcs
4. Tools: 1 set

Specifications:

Model

HD-GS450

Saw Blade diameter (mm)

Φ50-Φ450

Pitch range(mm)

Max. 25

Tooth depth (mm)

Max. 8

Range of cutting angle

0 degree-30 degree

Feeding Speed(Tooth/Min)

45-180

Thickness of saw blade(mm)

Max. 4

Grinding wheel diameter (mm)

Φ75-Φ150

Wheel Speed(rpm)

2800

Transmission motor (kw)

0.35

Wheel Motor (kw)

0.65

Machine size (mm)

800×800×1410

Net Weight

130
