Semi-Automatic Tube Tapering Machine Specifications

Semi-Automatic Tube Tapering Machine Specifications

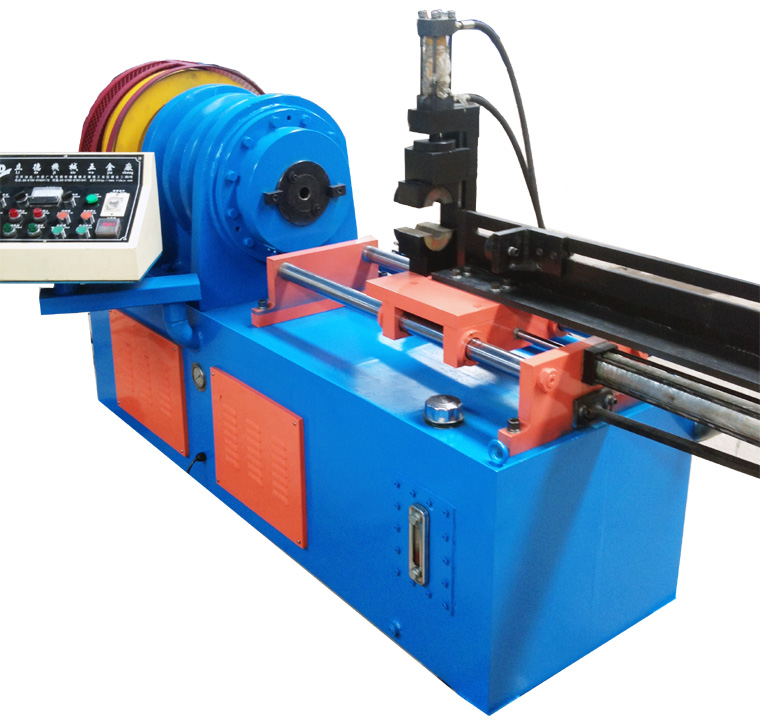

Stainless steel tube/pipe tapering machine, also known as tube/pipe end forming machine, is mainly used for tapering stainless steel pipe, iron pipe, aluminum pipe and so on. By applying foreign advanced technology, the tube tapering machine can process diameter of tube range from ∮12-∮76mm, pipe thickness from 0.5-3mm. With good processing quality, lower cost and high efficiency, the tube tapering machine is an ideal choice for clients to process various kinds of tubes.

Applications:
widely used in light & lamp industry, metal furniture, auto parts, motorcycle, bicycle, air-conditioning, exercise equipment, sanitary ware, building decoration, security doors and windows, guardrails, staircase, steel furnishment and iron industries, etc.

Features:
1. The machine is for tapering round pipe/tube end, manual or semi-Automatic model machinery are available for your choosing.
2. Pipe/Tube Material:iron, steel, stainless steel, aluminum,copper etc.
3. Processed workpiece surface is quite smooth, without scar
4. Easy operation, easy to change different pattern moulds.
5. Very Low noise during working, 75-85db.
6. Stable and reliable performance, high productivity.
7. Molds can be customized, as we make molds as well ,the molds will match the machine perfectly.

Model HD-AФ38*300 HD-AФ50*400
Pipe Range(mm) Φ12-Φ38mm Φ16-Φ50mm
wall thickness (mm) 0.8-3.0mm 0.8-3.0mm
Max. forming length (mm) 300mm 400mm
forming times(S/ times) 10 10
Main Motor 4KW 5.5KW
spindle speed (rev / min) 300 200
spindle height(mm) 800 800
Machine Size 2.5*1.1*1.5M 2.7*1.1*1.5M
Machine Weight  1600KG 1900KG

Model      HD-AФ76*600
Mould Length L-600 L-600 L-400
Max. Pipe O.D(mm) Ф76MM Ф95MM Ф125MM
Wall thickness(mm)  0.8-3.0MM  0.8-3.0MM  0.8-3.0MM
Max. forming length (mm) 600MM 600MM 400MM
Main Motor(Kw) 7.5 KW 11 KW 11 KW
Machine Size: 2.8*1.2*1.5M 2.6*1.2*1.7M 2.9*1.2*1.7M
Machine Weight(Kg) 2800KG 3800KG 2800KG
